BH type sensor is generally installed on the fixed end of wire rope,one side is connected to wire rope, the other side is connected to the shelves of fittings on the arm. It detects the crane's actual bearing under the principle that when the wire rope has a stream of tension after being stretched.BH type sensor is with the features like reasonable structure, compact, high accuracy, good stability, convenient installation and replace etc.
DETAILED DESCRIPTION

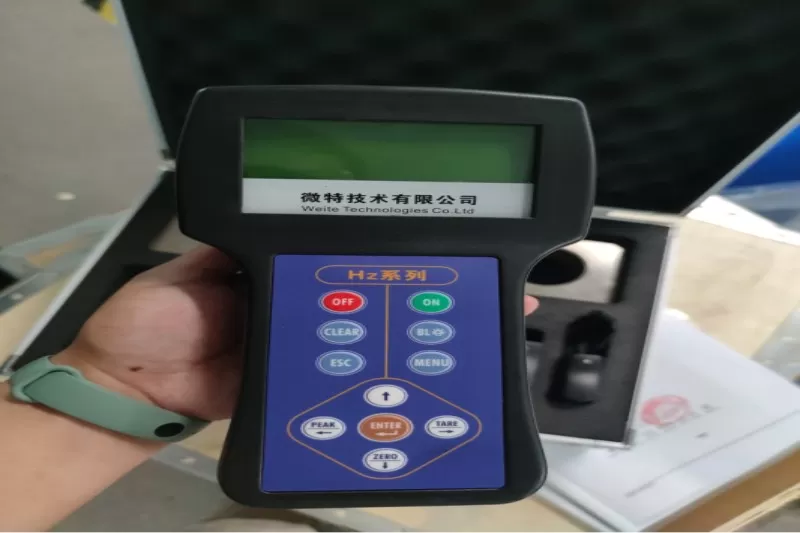

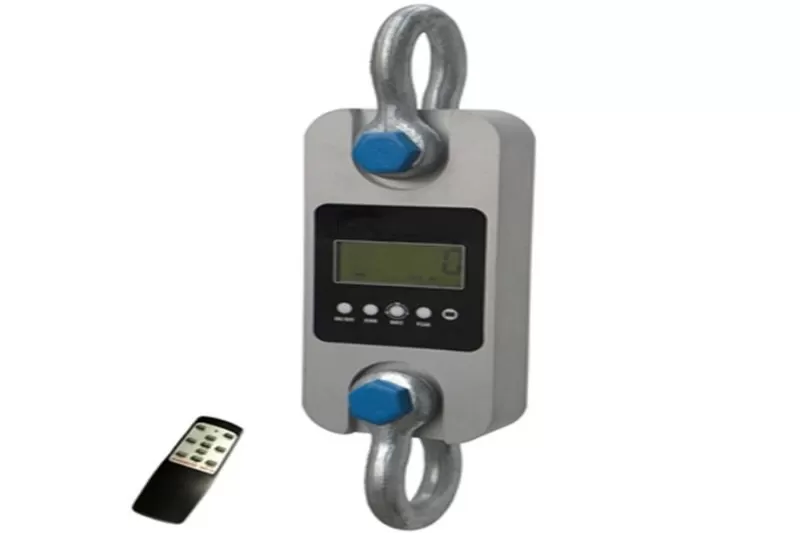

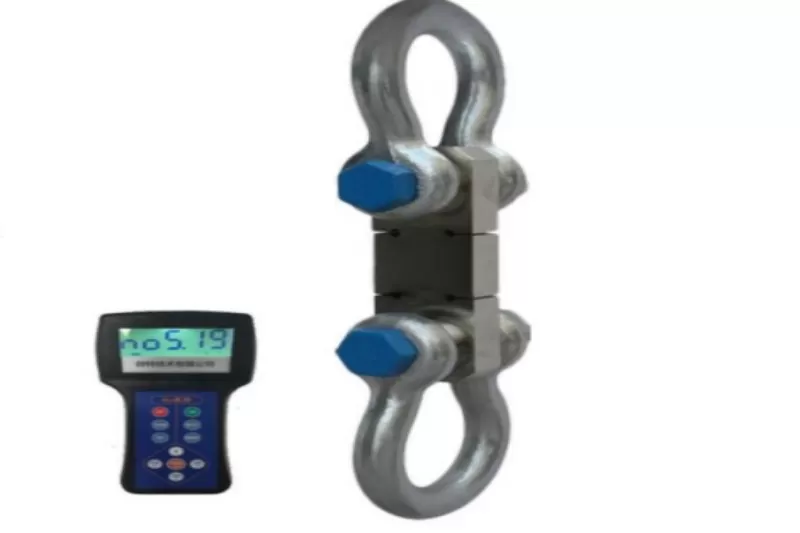

WS-BH series is a new product for industrial force measurement that our company has independently innovated according to the requirements of foreign customers. This product has high precision and is equipped with a wireless instrument independently developed by our company. It is easy to carry, can capture the peak value of force, and has control functions. It is an ideal force measurement product in the field of industrial hanging. Optiona l interface: Communication interface R232 can be connected to computer 4-20am voltage signal, current signal PLC touch screen, industrial computer, handheld terminal, etc. Transmitting antenna can be selected, external antenna and internal antenna to ensure that the antenna is not easily damaged.
Technical parameters
1. radio signal transfer
2. internal antenna
3. linear construction
4. 800 hours battery life
5. simple battery change out

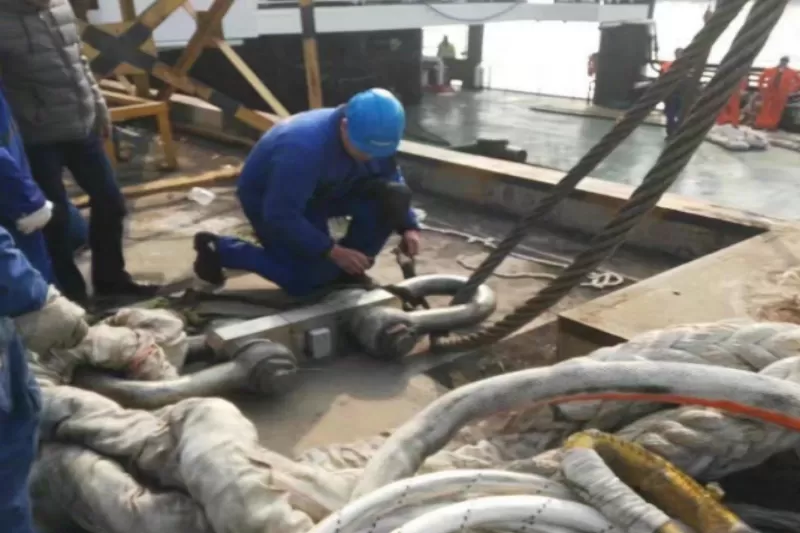

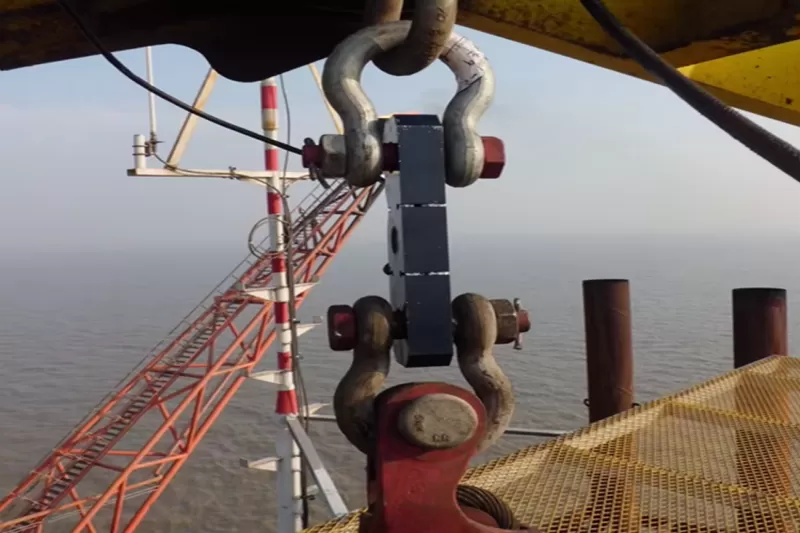

INSTALLATION CASE
| Indicator Display | 25mm (1") 5digits LCD with backlight |
| Waterproof grade | IP69 |
| Power on zero range | 20% F.S. |
| Manual Zero Range | 4% F.S. |
| Tare Range | 100% F.S. |
| Stable Time | ≤5seconds |
| Overload Indication | 100% F.S. + 9e |
| Max. Safety Load | 125% F.S. |
| Ultimate Load | 200% F.S. |
| Continuous use time | ≥90 hours |
| Body Battery | Standard 18650 Lithium battery, 3.7V/3100mAh |
| Indicator Battery | Rechargable 18650 lithium battery, 4.8V/3300mAh |
| Operating Temp | - 20℃ ~ + 50℃ |
| Operating Humidity | ≤85% RH under 20℃ |
| Wireless Distance | Conventional 80-300 meters (unobstructed) Enhanced: 80-600 meters (unobstructed) Customized: 80-1000 meters (unobstructed) Internet of Things 4G |
| Wireless networking system (optional) | Real-time data monitoring anywhere in the world |
| Wireless frequency Frequency | 433MHz |
