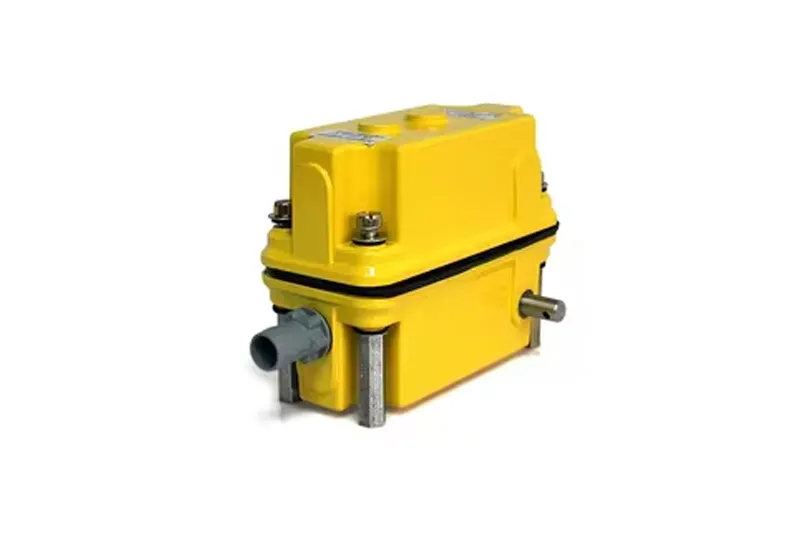

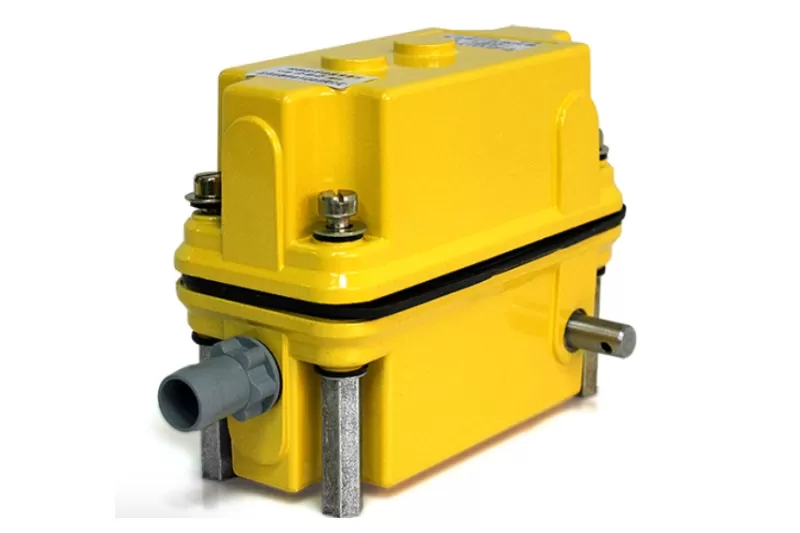

DXZ type Multi-function Stroke Limiter is widely applied to control and limit trilinear coordinates of space of the lifting, transmission in building, port, mining and other industries, DXZ type Multi-functions Stroke Limiter has many characteristics, like small volume, many functions, high accuracy, adjustable limit, better compatibility, convenient to install, maintain and adjust.
Technical parameters
| Style No. | DXZ |
| Work Temperature | minus 40 ~ +55℃ |
| Humidity | ≤90% |
| Ratio | 1:13, 1:17, 1:46, 1:60, 1:78, 1:210, 1:274, 1:960 |
| Model DXZ multifunction limit switch consist of | big high precision transmission ratio reducer,a mechanical memory control system with its output shaft and sensor |
| Model DXZ multifunction limit switch and displacement signal | control system connect with i't s output shaft via variable speed external wheel. |
| The memory cam and micro switch of corresponding Model DXZ multifunction limit switch adjustment axle | 1Z1T1W;2Z2T2WK;3Z3T3WK;4Z4T4WK |
| Connecting flange | will be equipted as request |

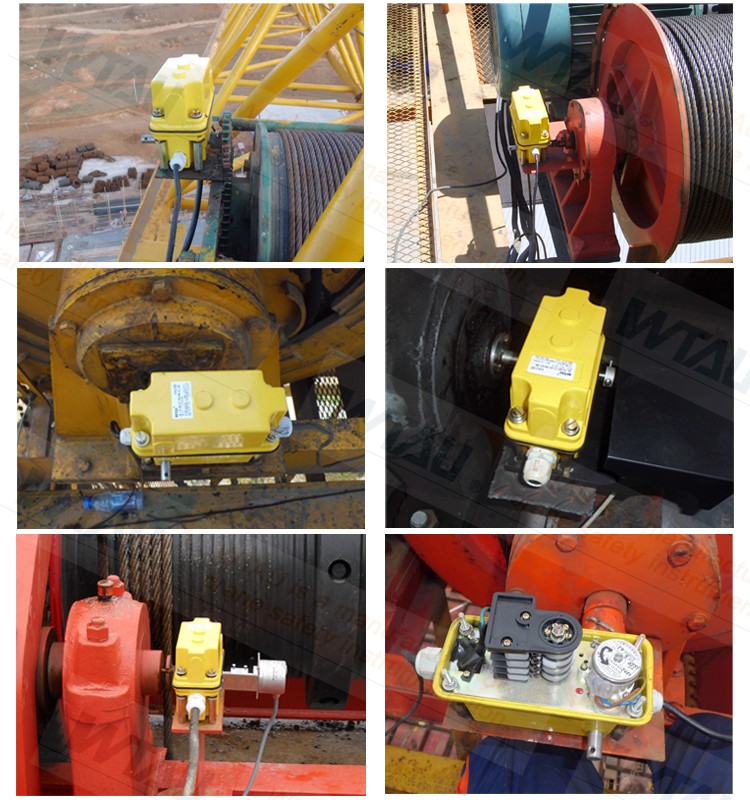

INSTALLATION CASE
CERTIFICATIONS
Explosion Proof Certificate
Explosion Proof Certificate
Quality Management System Certificate
CCS
CE-WTF-B500
ISO2022
CCS
